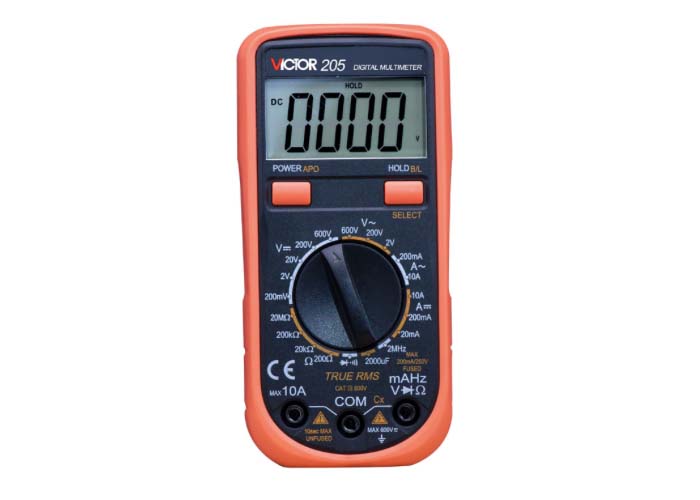

Digital Multimeter VICTOR 205 Stable And High Performance
The instrument is a stable digital multimeter driven by battery. It uses the LCD with 18mm high make the reading clearly. Backlight displaying and overload protection make it convenient to use .The instrument has the function of measuring DCV, ACV, DCA,ACA, resistance, capacitance, diode, continuity and frequency , thus it is a portable and desirable tool for users .The instrument takes dual-integral A/D converter as key point, is an excellent tools. It’s an ideal tool for lab, factory and family.
Specifications of Digital Multimeter VICTOR 205:
1．Display :LCD displaying.
2．Max. displaying: 1999(3 1/2digit)auto polarity indication.
3．Measuring method: dual slope A/D conversion.
4．Sampling rate: approx. 3 times/second.
5．Over range indication: the MSD displays“OL”.
6．Low battery indication:“” appears.
7．Operation environment: (0～40)℃,R.H.<80% .
8．Power:1.5V×2pcs
9．Size: 150×73.5×35mm
10．Weight: approx. 156g(including battery).
11.Accessories:operation manual ,holster, gift box, test leads and 1.5V battery.
Technical date of Digital Multimeter VICTOR 205:
| basic function | range | basic accuracy |
| DCV | 200mV/2V/20V/200V ±(0.5%+3) | |
| 600V | ±(1.0%+10) |
| ACV | 2V/200V | ±(0.8%+5) |
| 600V | ±(1.2%+10) |
| DCA | 20mA/200mA | ±(1.2%+8) |
| 10A | ±(2.0%+5) |
| ACA | 200mA | ±(1.5%+15) |
| 10A | ±(3.0%+10) |
| Resistance | 200Ω | ±(0.8%+5) |
| 20kΩ/200kΩ | ±(0.8%+3) |
| 20MΩ | ±(1.0%+25) |
| Capacitance | 20nF/200nF/2uF | ±(3.5%+20) |
| 20uF/200uF/2000uF | ±(5.0%+10) |
| Frequency | 10Hz/100Hz/1KHz/10KHz/100KHz/2MHz | ±(1.0%+10) |
| | | |
FAQ
1. What is our company MOQ?
As for now it is flexible, but it affects prices.
2. What's the best payment term?
Such as Western Union,T/T, L/C,Paypal, Bank Transfer, Money Gram, etc.
3.What's our company sample policy?
We will send you some samples with pleasure,but you need to pay for it.
4. What is our shipment and delivery term?
Shipment: Professional DHL/Fedex/TNT/UPS and other special line.
Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
